PWD and Elderly Smart Automation Solutions by Smart G4
PWD & Elderly Smart Automation Solutions
Smarter, safer, and more independent living for people with disabilities and the elderly
Smart G4 designs automation systems that empower people with disabilities and the elderly — wider spaces, voice control, wearable recognition, medicine reminders, activity monitoring, and intelligent alerts to relatives for true independence and peace of mind.
Smart G5 for PWD — Building
Each person with disability is recognized and greeted by name using Bluetooth, RFID tags, or LEB-enabled wearables. Once the person arrives, the building automatically calls the elevator and awaits until the PWD is inside. Floors can be selected by big button, voice command, or automatic tag-based logic for those who are both blind and deaf.
Smart G5 for PWD — In Control
The apartment recognizes and responds to the PWD per room, time, and activity schedule. Motorized bathroom doors, cabinet openers, shades, and main door. Special motorized shower plate with water temperature and flow valve control. Adjustable height counters and stove tops. Full lighting, mood, HVAC control by presence, LEB technology, voice, and tablets.
Smart G5 PWD — Watching Eye
Smart G4 acts as the watching nurse over the PWD or elderly. Sensors for motion, bed occupancy, toilet seat pressure, and LEB trigonometry track activities electronically and discretely. The system reminds about medicine, meals, hygiene, and sleep — and alerts relatives by SMS and push notification for visits and check-ins.
Smart G5 for PWD — In Services
The elderly or person with disability can conveniently report and request using voice, touch panels, or large buttons. Commands are automatically logged for reporting and analysis to help improve quality of service — from bed sheet changes and wheelchair requests to meal orders and emergency alerts.
Smart G4 Automation for PWD & Elderly
Purpose-built automation features designed for independence, safety, and dignity.
Motorized doors with presence and tag-based automatic opening for wheelchair users.
Voice and presence-triggered HVAC control for comfortable independent living.
Pressure sensor and push-to-lock bathroom door logic for privacy and safety.
Automated and voice-controlled lighting across all rooms and spaces.
Automated window shades and drapes controlled by schedule, presence, or voice.
Motorized shower seat and plate with preset water temperature and flow control.
PWD Toilet System & Smart Spa Panel
Purpose-built panels that give people with disabilities full independence and dignity — a color-coded WC door display with an emergency call button, a large-format exit panel with Braille markings, and a multi-function spa/therapy room control panel for assisted-care facilities.

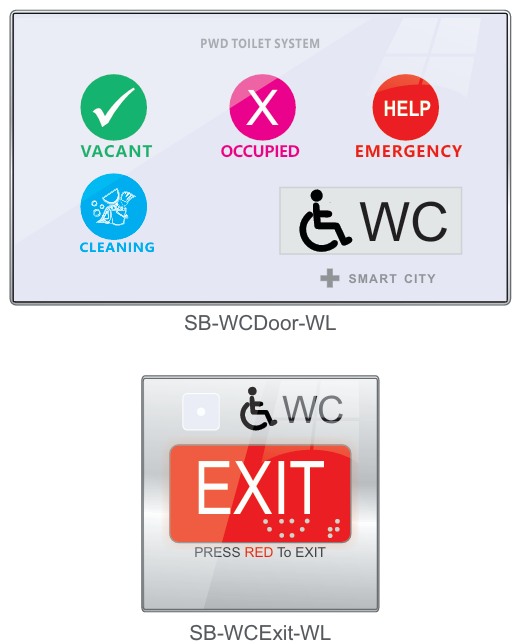

PWD Toilet System — Door & Exit Panels
The SB-WCDoor-WL mounts outside the accessible WC and displays room status in large color-coded icons. The SB-WCExit-WL inside the cubicle lets the user unlock and open the door independently with a large Braille-marked button — no grip strength required.
Accessibility-First Design
Large icon display
Color-coded status visible from 10+ meters
Emergency call
One-press alert to nursing station or security
Braille EXIT button
Tactile markings for visually impaired users
No grip required
Large red button operable with palm or elbow
S-Bus synchronized
Door status updates building BMS in real time
Smart City ready
Integrates with municipal accessibility networks
Protocol
S-Bus · Open Protocol · BMS Ready

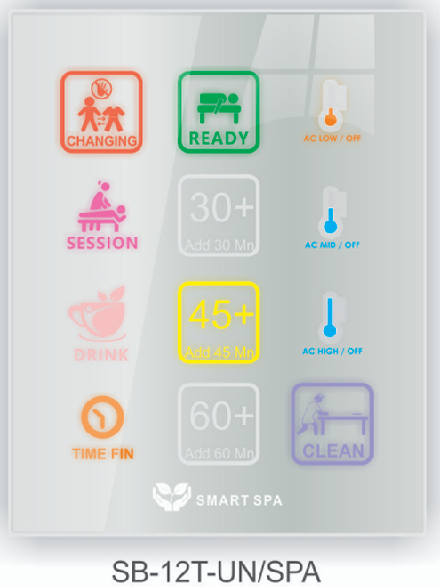

Smart Spa & Therapy Room Control Panel
Designed for assisted-care spas, hydrotherapy suites, and rehabilitation therapy rooms, the SB-12T-UN/SPA gives staff and therapists one-touch control over every room function. Session timing, AC temperature levels, service requests, and room cleaning status are all managed from a single glass-touch panel.
Session timer
Add 30, 45, or 60 min with one tap
AC control
Low / Mid / High temperature presets
Service requests
Drink, assistance, and changing alerts
Room status
Ready, Session, Cleaning, Time Finished
Smart Elderly Monitoring & Alert System
Smart G4 acts as a silent, always-on caregiver for elderly residents living alone or in assisted-care facilities. Medicine timers, meal and toilet activity tracking, fall detection, and instant SMS alerts to relatives — so families stay informed and the elderly stay independent.
Medicine Timer & Organizer
Scheduled reminders at exact times — the system announces medicine time via speaker, lights up the medicine cabinet, and sends a push notification to relatives if the elderly person does not acknowledge within the set window.
Toilet Visit Alert
If the elderly person has not visited the toilet beyond a configurable time threshold (e.g. 6 hours), the system sends an SMS and push alert to designated relatives or caregivers — a discreet but critical health indicator.
Kitchen & Meal Activity Alert
Motion and presence sensors in the kitchen track whether the elderly person has visited to prepare or eat a meal. If no kitchen activity is detected past a set mealtime, relatives receive an alert to check in.
Daily Activity Pattern Tracking
The system learns the elderly person's daily routine — wake time, room movements, meal times, rest periods — and flags deviations. An unusually long period of inactivity in any room triggers a welfare check alert.
Bed Occupancy & Sleep Monitor
Bed pressure sensors detect whether the elderly person is in bed at expected sleep hours. If they leave bed in the night and do not return within a threshold, or if they remain in bed past a normal wake time, an alert is sent to relatives.
Emergency Panic Button
Large, easy-to-press panic buttons placed in every room — bedroom, bathroom, kitchen, and living room. One press sends an immediate SMS, push notification, and automated phone call to all designated emergency contacts simultaneously.
Relative App & SMS Alerts
All alerts — medicine, meals, toilet, sleep, panic — are delivered via the Smart-Clinic App, SMS, and push notifications to a configurable list of relatives and caregivers. Each alert includes the room, time, and type of event for fast response.
Fall & Inactivity Detection
Infrared and LEB trigonometry sensors detect sudden falls or prolonged floor-level presence. The system immediately triggers an alarm, unlocks the main door for emergency access, and alerts all contacts with the room location.
How the Alert System Works
From sensor detection to family notification — fully automatic.
01
Sensor Detection
Motion, pressure, door, and occupancy sensors continuously monitor activity across every room.
02
Threshold Check
The system compares activity against configurable time thresholds — toilet, kitchen, bed, medicine.
03
Smart Alert Trigger
When a threshold is exceeded, an alert is generated with room, event type, and elapsed time.
04
Family Notified
SMS, push notification, and in-app alert sent instantly to all designated relatives and caregivers.
Explore more solutions
Design a Smarter Space for PWD
Contact our team to discuss a tailored Smart G4 automation solution for people with disability or elderly care facilities.
